| Model: | Semi-automatic | Capacity: | 60-70kg/h |
|---|---|---|---|
| Machine 2: | Potato Cutting Machine | Machne 3: | Blanching Machine |
| Machine 4: | Dewatering Machine | Warranty: | 12 Months |
| Material: | Stainless Steel | Feature: | Durable And Healthy |
| High Light: | french fries production line,electric fryer machine |
||
Industrial Small Scale 60-70kg/h Frozen French Fries Making Machine Potato Chips Production Line
►Description
Potato chips production line is one kind of snacks processing machine from fresh potato after washing, peeling, slicing, frying and flavoring.
The potato chips processed by potato chips production line have the special delicious flavor of roasted patato, and the rich nutrition remains.
Potato chip is very popular with all range of people all over the world, so our potato chip machine is also very popular among the customers all over the world.
►Raw material
The raw material can be fresh potatoes, also can be some other root vegetables, such as sweet potatoes, purple sweet potato,taro,cassava etc.
►Flowchart

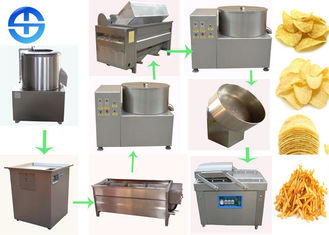

Peeling --- slicing --- blanching --- dewatering --- frying --- deoiling --- flavoring --- packing
►Features
| 1. The main parts of whole production line of potato chip machine is made of stainless steel, which is healthy for people; |
| 2. The stainless steel is easy to clean and durable; |
| 3. The potato chips is one most of the popular snacks, low investment can make big profit, so the potato chip machine is your best business partner; |
| 4. No pollution: potato chip machine adopts the water and oil mixed principle to fry the chips, so there's no smoke or lampblack produced in the working; |
| 5. The temperature, frying time and deoiling time are controlled by the computer; |
| 6. Automatic deischarging system can reduce the labor intensity of the workers and improve the product quality. |
►Technical parameter
| Fully Automatic Line | Semi-automatic line |
| Raw material: 500kg/h Output: 150kg/h | Raw material:100kg/h output:30kg/h |
| Raw material:200kg/h output:70kg/h | |
| Raw material: 800kg/h Output: 300kg/h | Raw material:400kg/h output:150kg/h |
| Product name | Product name |
| 1. Elevator | 1. Cleaning and peeling machine |
| 2. Cleaning and peeling machine | 2. Potato cutting machine |
| 3. Picking line | 3. Blanching line |
| 4. Elevator | 4. Dehydrator |
| 5. Potato cutting machine | 5. Oil-water mixing frying machine |
| 6. Rinsing line | 6. De-oiling machine |
| 7. Blanching line | 7. Favoring machine |
| 8. Dehydrator | 8. Vacuum nitrogen filling packing machine |
| 9. Electric frying line | |
| 10. Vibrating de-oiling machine | |
| 11. De-oiling line | |
| 12. Flavoring line | |
| 13. Picking line | |
| 14. Automatic packing machine |
