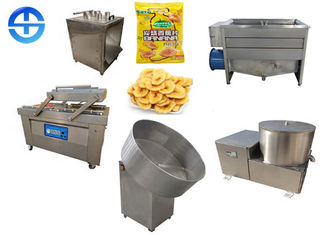

200KG/H Potato Chips Production Line Semi Automatic Plantain Chips Frying Machine

China 200KG/H Potato Chips Production Line Semi Automatic Plantain Chips Frying Machine supplier

Large Image :  200KG/H Potato Chips Production Line Semi Automatic Plantain Chips Frying Machine

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: 200KG/H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: exporting wooden case
Delivery Time: 25-30 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Model: Semi-automatic Capacity: 200kg/h
Machine 1: Banana Cutting Machine Machne 2: Blanching Machine
Machine 3: Dewatering Machine Name: Plantain Chips Making Machine
Material: Stainless Steel Feature: Durable And Healthy

200KG/H Stainless Steel Plantain Chips Fryer, Plantain Chips Frying Production Line​



Application:



Suitable for potato chips, banana chips, apple chips and so on.



Product processing of banana chips:



Peeling → slicing → rinsing → air drying → frying → air drying → seasoning → packaging



Product capacity of banana chips:



Semi automation capacity is 50kg/h, 100kg/h, 200kg/h.



Automation capacity is 100kg/h, 150kg/h, 260kg/h, 400kg/h.





Product Features of banana chips line:



1 Deep-fried assembly line The main body of the machine is made of high-quality stainless steel. It adopts double mesh belt to transport video, and the upper andlower mesh belts can be frequency-controlled.
2 The user can adjust the transmission speed of the mesh belt according to the different foods to be fried. It is equipped with a high-efficiency burner, which is quick in heating and high in production efficiency.
3 Electric lifting system, which is convenient for workers to clean and maintain the body.
4 Automatic exhaust fume system to ensure workers have a good working environment.
5 Constant temperature continuous production ensures that the food is fried atthe same temperature.



Technical Parameter



Machine Parameter
1.Plantain slicer

Power:0.75kw Voltage:380V/220V

Capacity:600-800Kg/h

Weight:100Kg

Size:650*550*900mm

2.Blanching

Power:36kw Voltage:380v/220V

Capacity:500Kg/h (2 sets.)

Size:2200*700*900mm Weight:180Kg

3.Dewater machine

Power:1.1kw Voltage:380V/220V

Capacity:300Kg/h

Size:1000*500*700mm Weight:360Kg

4. fryer machine

Heating Type:Electric/CoalRated Power:36kw

Overall Dimension:1300*1400*1800mm

Capacity:100-150kg/h

Fry Fame Size:1000mm

Should the Oil:200L Weight:300kg

5.De-Oil Machine

Power:1.1kw Voltage:380V/220V

Capacity:300Kg/h

Size:1000*500*700mm Weight:360Kg

6.Flavoring machine

Power:1.5Kw Voltage:380V/220V

Capacity:800Kg/h

Size:1200*1000*1400mm

Weight:180Kg

7.Plantain Chips Packing Machine

Packing Speed: 40-60 Bags/min

Power:3.0KW/220V

Measure Range:5-100 piece 20-100g

Gross Weight: 400kg

Bag Size Marking: L: 50-150mm/W: 40-150mm

The Thickness of Packing Film :0.03-0.08mm

Outsize Dimensions:750x980x1680mm



200KG/H Potato Chips Production Line Semi Automatic Plantain Chips Frying Machine
