High Output Fruit And Vegetable Dryer Machine 360 kg/Batch With Stainless Steel Material

China High Output Fruit And Vegetable Dryer Machine 360 kg/Batch With Stainless Steel Material supplier

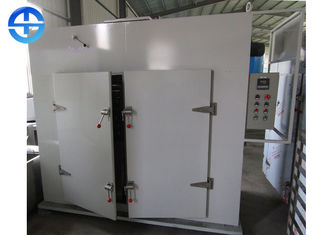

Large Image :  High Output Fruit And Vegetable Dryer Machine 360 kg/Batch With Stainless Steel Material

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: CT-C-III

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: exporting wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Commercial Vegetable Dryer Power: 45kw
Quantity Of Tray: 144 Trays Quantity Of Cart: 6 Carts
Capacity: 360kg/batch Dimension: 3300*2200*2000mm
Model: CT-C-III Purpose: Making Dried Fruits And Vegetables

High output 360kg/batch stainless steel vegetable and fruit drying machine



Description



This machine is equipped with noise-canceling & heat-stable axial flow fan and automatic temperature control system, its enclosed circulatory system design increases the drying oven thermal efficiency from traditional 3-7% to 35-45% at present, and the highest heat efficiency can be up to 70%.It is widely used in food, chemical, medical field for drying materials such as vegetables, fruits like apples, pineapple, pawpaw, coconut, mango, banana, spice, sea cucumber, seaweeds, beef jerky, fish, herbs, onions, gingers, chili, pepper, cabbage, carrot, tea leaves, also Chinese herbal pieces, dissolved medicines, etc.



Features



1. This drying machine uses electric heating elements as the heat source.
2. The electrical source of baking oven is three-phase four-wire system.
3. The material is stainless steel,keep the machine durable using.
4. After switching on the electric power, switch on the fan. The rotational direction of fan shall consist with the mark.
5. When adjust the space between two shutter vanes on both the right side and left side of the oven, try your best to make the passage area of hot airflow as large as possible (please pay attention to the top vane and the bottom vane that they can not be moved).
6. It is the greatest feature that most of the hot air is circulated within the oven, so as to strengthen the heat transfer and mass transfer and to save energy.





Technical parameter



Model Capacity(kg/batch) Power(kw) Tray Cart Dimension(mm)
CT-C-O 25kg 9 16 0 1550*1000*2044
CT-C-IA 60kg 9 24 1 1400*1200*2000
CT-C-I 120kg 15 48 2 2300*1200*2000
CT-C-II 240kg 30 96 4 2300*2200*2000
CT-C-III 360kg 45 144 6 3300*2200*2000
CT-C-IV 480kg 60 192 8 4460*2200*2290



Application



  This kind of fish drying machine/fruit and vegetable drying machine can be used to dry many kinds of materials, such as onions, gingers, chili, pepper, cabbage, carrot, tea leaves, herbs etc. Except for vegetable, it can also be used to fruits such as apple, pineapple, pawpaw, coconut, mango, banana. Besides, this vegetable drying machine can be used to dry sea cucumber, seaweeds, beef, jerky, fish as well.



High Output Fruit And Vegetable Dryer Machine 360 kg/Batch With Stainless Steel MaterialHigh Output Fruit And Vegetable Dryer Machine 360 kg/Batch With Stainless Steel Material
