Industrial beef jerky fruit vegetable dehydrator, stainless steel drying machine

China Industrial beef jerky fruit vegetable dehydrator, stainless steel drying machine supplier
Industrial beef jerky fruit vegetable dehydrator, stainless steel drying machine supplier Industrial beef jerky fruit vegetable dehydrator, stainless steel drying machine supplier

Large Image :  Industrial beef jerky fruit vegetable dehydrator, stainless steel drying machine

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: CT-C-IV

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: exporting wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Fruit Drying Machine Power: 60kw
Quantity Of Tray: 192 Trays Quantity Of Cart: 8 Carts
Capacity: 480kg/batch Dimension: 4460*2200*2290mm
Model: CT-C-IV Purpose: Making Dried Fruits And Vegetables

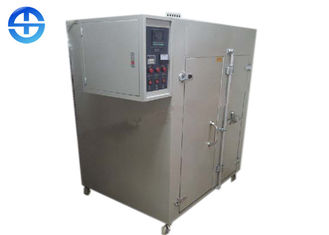

Industrial beef jerky fruit vegetable dehydrator, stainless steel drying machine



Description



1.Stainless steel sieve pan: adopts stainless steel material, suitable salt, alkali material use, easier to clean, not contaminated material.

2.Visual Design: composite glass panel, the working process of the be clear at a glance. dry control well.

3.Intelligent design: the use of intelligent computer version control, simple and quick operation, a vacuum is more accurate, high degree of intelligence!

4.Far infrared design: the use of far infrared heating technology, more uniform material drying and fast. Dehumidification process, the material does not change color.



Application



1.Applied for such trades as pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry sectors such as material and product heat curing, drying dehydration.

2.Such as fruits, vegetable, traditional Chinese medicine yinpian, granule, pill, packing bottle, pigment, dyestuff, dehydration vegetable, melons, banger, plastic resin, electric elements, drying varnish and so on.



Technical parameter



Model Capacity(kg/batch) Power(kw) Tray Cart Dimension(mm)
CT-C-O 25kg 9 16 0 1550*1000*2044
CT-C-IA 60kg 9 24 1 1400*1200*2000
CT-C-I 120kg 15 48 2 2300*1200*2000
CT-C-II 240kg 30 96 4 2300*2200*2000
CT-C-III 360kg 45 144 6 3300*2200*2000
CT-C-IV 480kg 60 192 8 4460*2200*2290



Features



1.This drying machine uses electric heating elements as the heat source.
2. After switching on the electric power, switch on the fan. The rotational direction of fan shall consist with the mark.
3. When adjust the space between two shutter vanes on both the right side and left side of the oven, try your best to make the passage area of hot airflow as large as possible (please pay attention to the top vane and the bottom vane that they can not be moved).

4.The electrical source of baking oven is three-phase four-wire system.
5.The material is stainless steel,keep the machine durable using.
6.It is the greatest feature that most of the hot air is circulated within the oven, so as to strengthen the heat transfer and mass transfer and to save energy.

Industrial beef jerky fruit vegetable dehydrator, stainless steel drying machine

Industrial beef jerky fruit vegetable dehydrator, stainless steel drying machine
